How to register Oracle Database XE with Oracle JDeveloper and Edit, unblock the users

For working with oracle database server via Oracle JDeveloper for database designing, database development, database connectivity with your project for database driven desktop and web applications development,  database registration is required with JDeveloper IDE. Oracle JDeveloper is giving better tooling support for database designing, edit, creation and deletion. To register oracle database 11g XE with  JDeveloper, follow the below instruction.


For this Tutorial, Oracle JDeveloper and Oracle database should be already installed. If these are not already installed, read my below blog for installation

How to install JDeveloper 11g IDE, ADF Run time and Web Logic Server

How to install Oracle Database XE 11g R2

Run the oracle JDeveloper and from file menu click at View -> Database -> Database Navigator   as showing in snapshot below

For database new connection, Right click at IDE Connecter and select the New connection option

A Popup window will open for creation the database connection,
give the connection name  for example Oracle_xe
Give the user name and password for your database  like SYSTEM

Give the SID for your database. For Oracle Database XE, the default SID is XE. For same computer Host name will be localhost and if database is installed at any other computer then give the IP of that computer.

Click at Test button. If given information are OK then test result will success otherwise it will give error.

Click at OK to complete the connection setup

Now you can work with your database. If you have log in with administrator password you can create, delete, edit the database and users and much more.

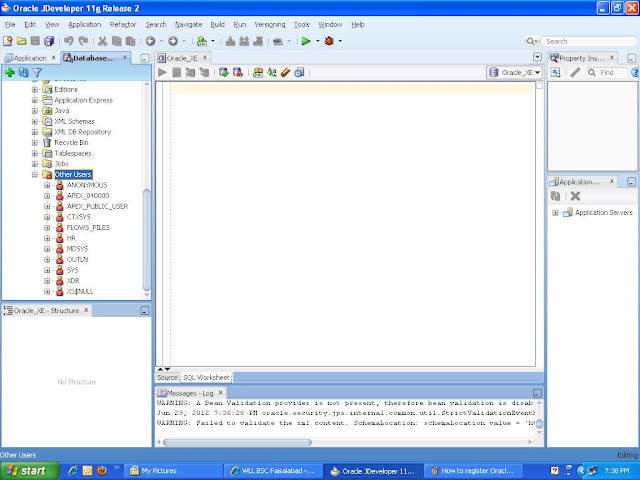

To Edit and unblock the user follow the below as showing in snapshot. Double click the other users option to open the sub tree, now all added database users are listed.

For example to edit the HR user. Right click on it and click at edit user

A pop up window will open for database users creation and edit. Here you will find all options for users password creation / edition, Lock / unlock user, Roles etc.

Here in role type, you can assigned roles to users like admin role, DBA Role, creation, deletion, views etc.

In result tab, your all modification detail will be shown in SQL statements. By clicking at apply button, all modification will be applied to database with new roles,

Congratulation, you have been successfully registered the Oracle database 11g XE with Oracle JDeveloper studio. Now you are able to work with databases from JDeveloper IDE.
