Saturday, March 1, 2014

How to create Java Struts Web application Project using Struts Framework & Java EE 7 in Netbeans IDE and with GlassFish Web Application Server

In this tutorial, you will learn how to create a java struts web application project in Netbeans IDE by using Java Struts MVC framework and Java ee technology. How to deploy and run struts web application in Glass-Fish Web-application-server.

What is Apache Struts: Java Struts is an open-source MVC (Model View Controller) framework for modern Java EE web applications development. Struts framework favors convention over configuration, it is extensible using a plugin architecture and ships with REST, AJAX and JSON plugin support. Apache struts has much more support for developing large scale, complicated and stable business web applications.

Technologies and web development software used in this tutorial are
1-  Netbeans IDE 7.4
2- Java EE 7
3- Struts 1.3
4- JSP
5- XML
6- html

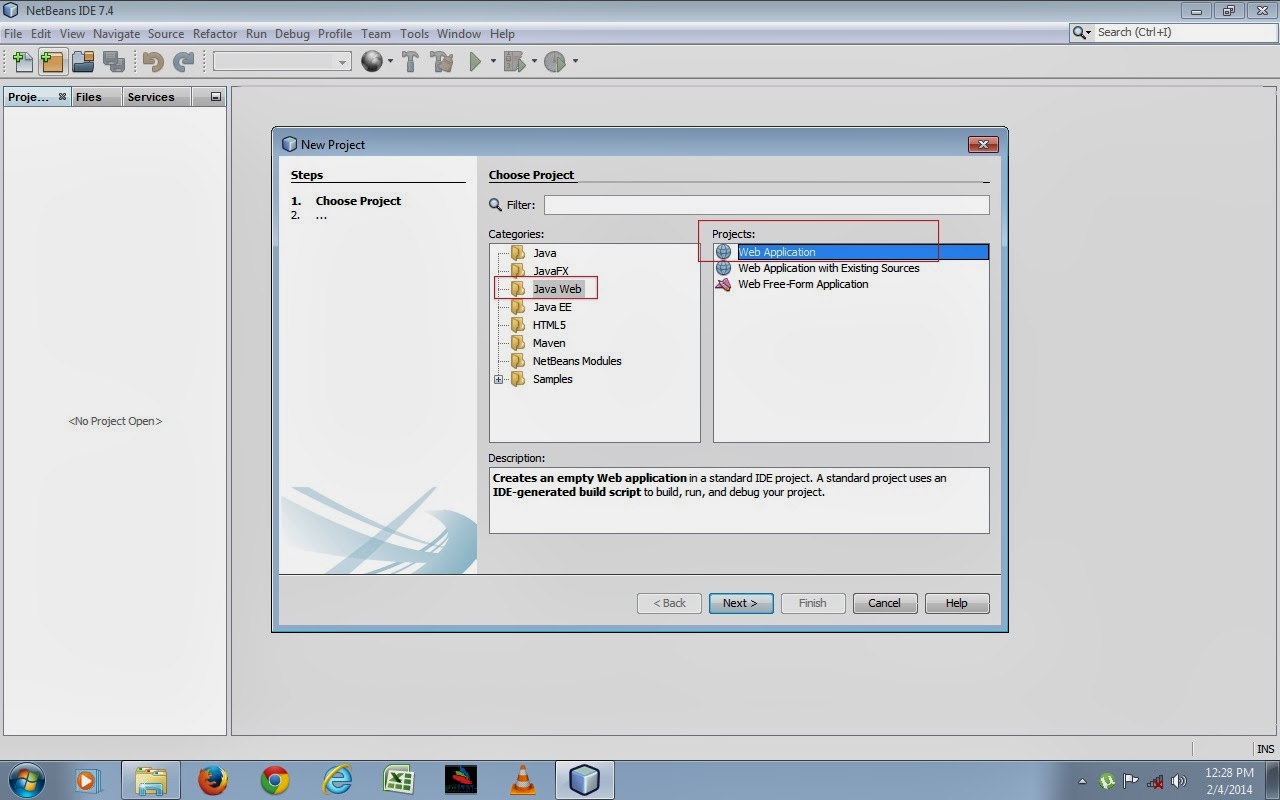

In the NetBeans IDE, Click on File menu -> New Project or press Ctrl + shift + N buttons to create a new project. After clicking a new window will open.
In Categories section select Java Web and in project section select Web Application as showing in below snapshots. Clink next for next process

Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development

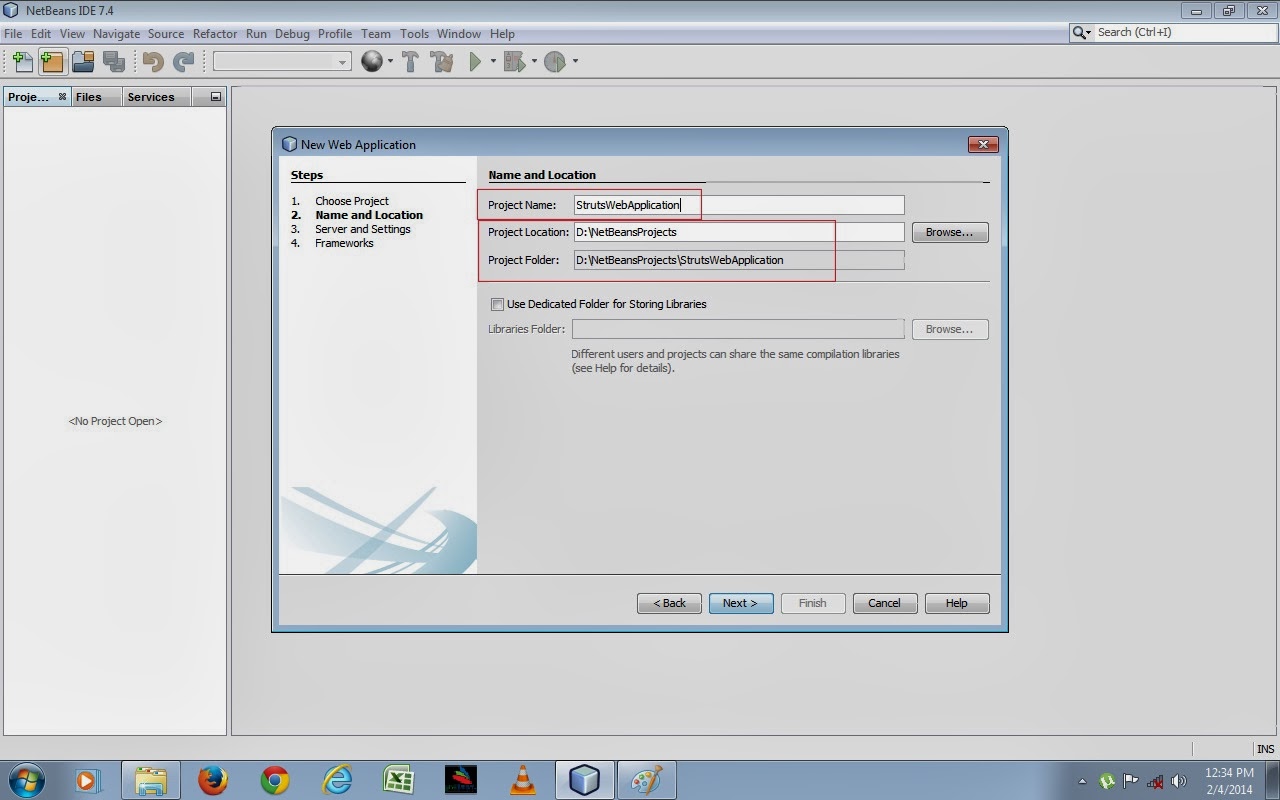

Here in Project name and location step, give Project name StrutsWebApplication, give Project location where project files will save like D:\NetBeansProjects, in project Folder, a folder with your project name will automatically generate.

Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development

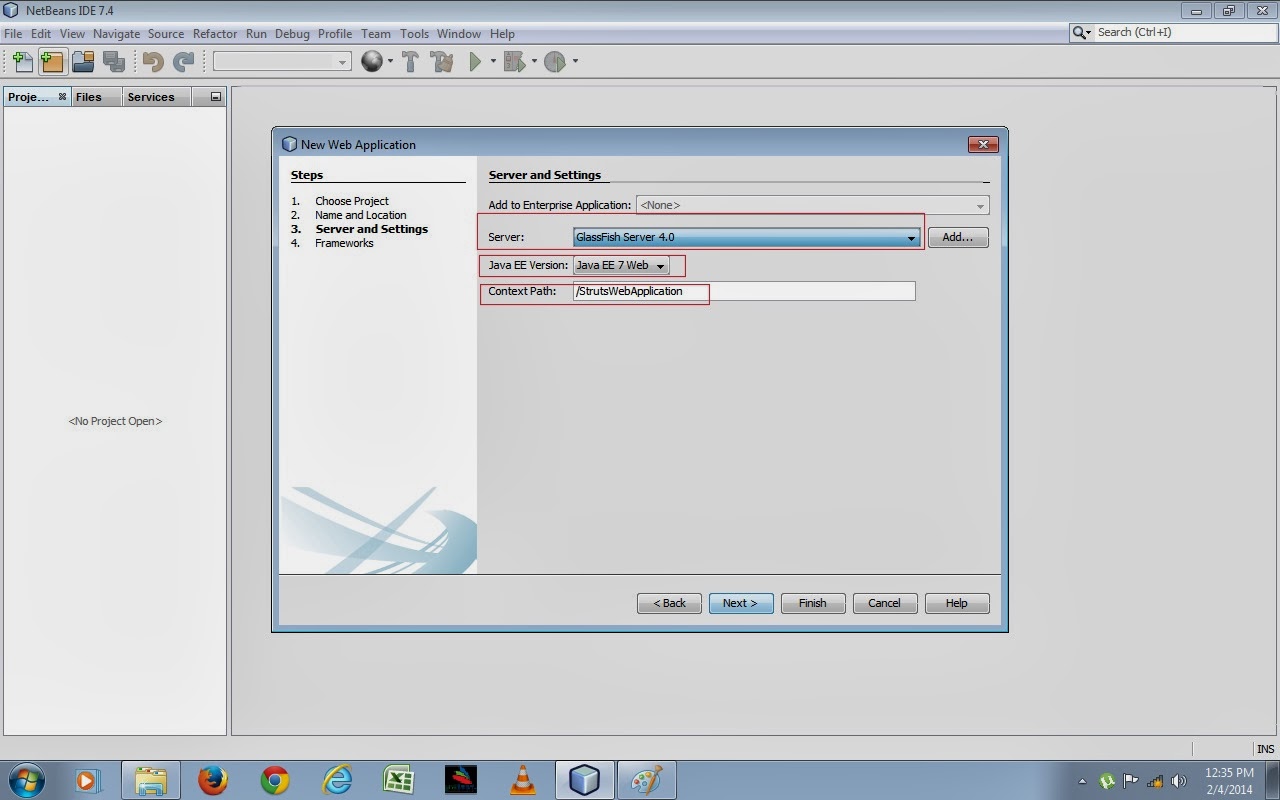

In this Server and Setting step, select your required web server, Select GlassFish Server 4.0 for this tutorial.
In Java EE Version, you can select your required version like Java EE 6, Java EE 7. We will use Java EE 7 version.
In Context Path, a custom path can also give. By default, your /project name is default path which will show in browser web address. Select by default path and click next

Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development
Here in Framework option check the Struts 1.3. and in Struts configuration options, select default options. Here you can customized options with respect to your project requirement and designing. here you can also enable and add Struts TLDs library support. Clink Finsh to create project

Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development


Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development, Java IDE, Java development softwares

Congratulation, you have successfully created a Java Struts Web application project in Netbeans IDE. All required project files like web.xml, struts-config.xml, validation.xml, validator-ruls.xml, title-defs.xml and two JSP pages index.jsp & welcomeStruts.jsp have been created as showing in below


Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development, Java IDE, Java development softwares, struts development tool, j2ee web development tool

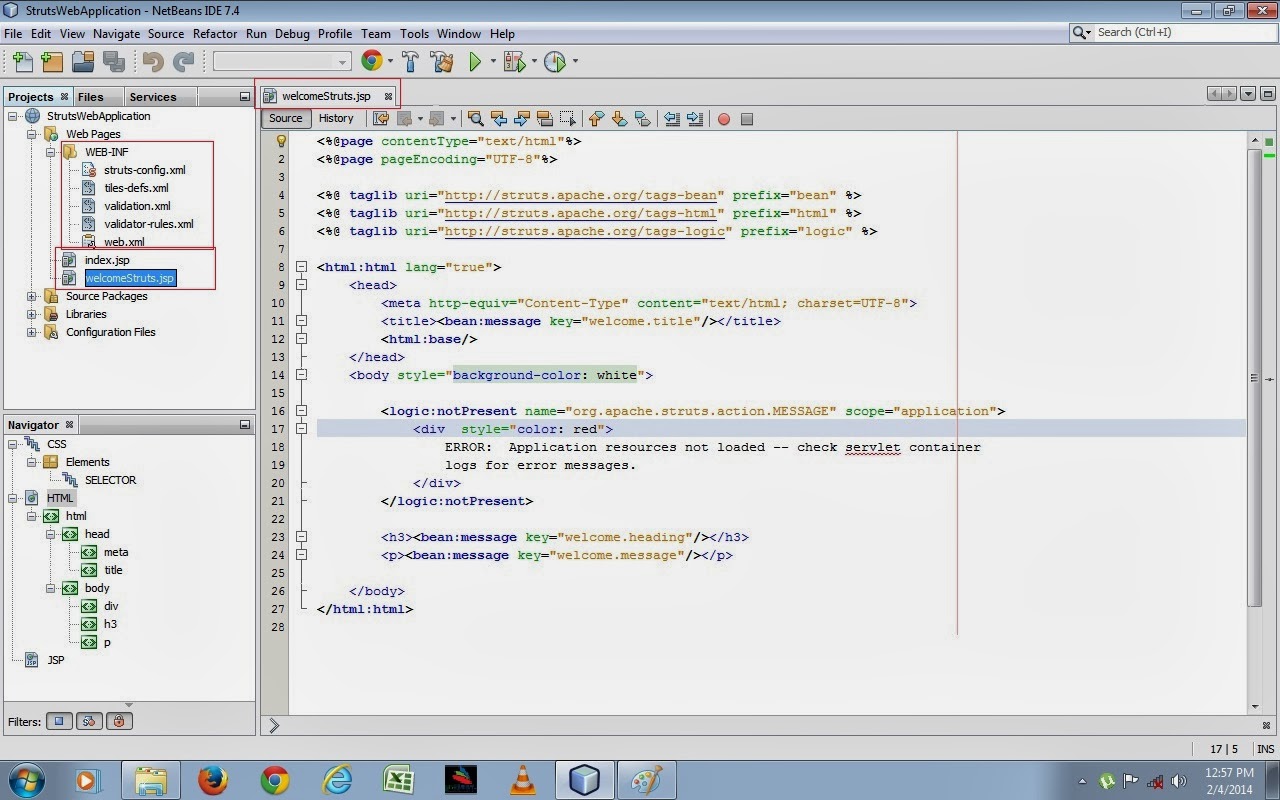

These are by default created codes

welcomeStruts.jsp

<%@page contentType="text/html"%>
<%@page pageEncoding="UTF-8"%>

<%@ taglib uri="http://struts.apache.org/tags-bean" prefix="bean" %>
<%@ taglib uri="http://struts.apache.org/tags-html" prefix="html" %>
<%@ taglib uri="http://struts.apache.org/tags-logic" prefix="logic" %>

<html:html lang="true">
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
        <title><bean:message key="welcome.title"/></title>
        <html:base/>
    </head>
    <body style="background-color: white">

        <logic:notPresent name="org.apache.struts.action.MESSAGE" scope="application">
            <div  style="color: red">
                ERROR:  Application resources not loaded -- check servlet container
                logs for error messages.
            </div>
        </logic:notPresent>

        <h3><bean:message key="welcome.heading"/></h3>
        <p><bean:message key="welcome.message"/></p>

    </body>
</html:html>

index.jsp web page

<%@page contentType="text/html"%>
<%@page pageEncoding="UTF-8"%>

<jsp:forward page="Welcome.do"/>


web.xml       Codes
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.1" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd">
    <servlet>
        <servlet-name>action</servlet-name>
        <servlet-class>org.apache.struts.action.ActionServlet</servlet-class>
        <init-param>
            <param-name>config</param-name>
            <param-value>/WEB-INF/struts-config.xml</param-value>
        </init-param>
        <init-param>
            <param-name>debug</param-name>
            <param-value>2</param-value>
        </init-param>
        <init-param>
            <param-name>detail</param-name>
            <param-value>2</param-value>
        </init-param>
        <load-on-startup>2</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>action</servlet-name>
        <url-pattern>*.do</url-pattern>
    </servlet-mapping>
    <session-config>
        <session-timeout>
            30
        </session-timeout>
    </session-config>
    <welcome-file-list>
        <welcome-file>index.jsp</welcome-file>
    </welcome-file-list>
</web-app>


struts-config.xml

<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE struts-config PUBLIC
          "-//Apache Software Foundation//DTD Struts Configuration 1.3//EN"
          "http://jakarta.apache.org/struts/dtds/struts-config_1_3.dtd">


<struts-config>
    <form-beans>

    </form-beans>

    <global-exceptions>

    </global-exceptions>

    <global-forwards>
        <forward name="welcome"  path="/Welcome.do"/>
    </global-forwards>

    <action-mappings>
        <action path="/Welcome" forward="/welcomeStruts.jsp"/>
    </action-mappings>

    <controller processorClass="org.apache.struts.tiles.TilesRequestProcessor"/>

    <message-resources parameter="com/myapp/struts/ApplicationResource"/>

    <!-- ========================= Tiles plugin ===============================-->
    <!--
    This plugin initialize Tiles definition factory. This later can takes some
    parameters explained here after. The plugin first read parameters from
    web.xml, thenoverload them with parameters defined here. All parameters
    are optional.
    The plugin should be declared in each struts-config file.
    - definitions-config: (optional)
    Specify configuration file names. There can be several comma
    separated file names (default: ?? )
    - moduleAware: (optional - struts1.1)
    Specify if the Tiles definition factory is module aware. If true
    (default), there will be one factory for each Struts module.
    If false, there will be one common factory for all module. In this
    later case, it is still needed to declare one plugin per module.
    The factory will be initialized with parameters found in the first
    initialized plugin (generally the one associated with the default
    module).
    true : One factory per module. (default)
    false : one single shared factory for all modules
    - definitions-parser-validate: (optional)
    Specify if xml parser should validate the Tiles configuration file.
    true : validate. DTD should be specified in file header (default)
    false : no validation

    Paths found in Tiles definitions are relative to the main context.
    -->
    <plug-in className="org.apache.struts.tiles.TilesPlugin" >
        <set-property property="definitions-config" value="/WEB-INF/tiles-defs.xml" />
        <set-property property="moduleAware" value="true" />
    </plug-in>

    <!-- ========================= Validator plugin ================================= -->
    <plug-in className="org.apache.struts.validator.ValidatorPlugIn">
        <set-property
            property="pathnames"
            value="/WEB-INF/validator-rules.xml,/WEB-INF/validation.xml"/>
    </plug-in>

</struts-config>


validation.xml file

<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE form-validation PUBLIC
          "-//Apache Software Foundation//DTD Commons Validator Rules Configuration 1.1.3//EN"
          "http://jakarta.apache.org/commons/dtds/validator_1_1_3.dtd">

<form-validation>

<!--
     This is a minimal Validator form file with a couple of examples.
-->

    <global>

        <!-- An example global constant
        <constant>
            <constant-name>postalCode</constant-name>
            <constant-value>^\d{5}\d*$</constant-value>
        </constant>
        end example-->

    </global>

    <formset>

        <!-- An example form -->
        <form name="logonForm">
            <field
                property="username"
                depends="required">
                    <arg key="logonForm.username"/>
            </field>
            <field
                property="password"
                depends="required,mask">
                    <arg key="logonForm.password"/>
                    <var>
                        <var-name>mask</var-name>
                        <var-value>^[0-9a-zA-Z]*$</var-value>
                    </var>
            </field>
        </form>

    </formset>

    <!-- An example formset for another locale -->
    <formset language="fr">

        <constant>
            <constant-name>postalCode</constant-name>
            <constant-value>^[0-9a-zA-Z]*$</constant-value>
        </constant>

        <!-- An example form -->
        <form name="logonForm">
            <field
                property="username"
                depends="required">
                    <arg key="logonForm.username"/>
            </field>
            <field
                property="password"
                depends="required,mask">
                    <arg key="logonForm.password"/>
                    <var>
                        <var-name>mask</var-name>
                        <var-value>^[0-9a-zA-Z]*$</var-value>
                    </var>
            </field>
        </form>

   </formset>

</form-validation>


How to Deploy and Run Struts Java ee web application project in GlassFish web server

There are different procedure to deploy and run a web application project in web server in Netbeans IDE. You can first deploy the web application in web server and then run it. You can also directly select run option to deploy and run application, in this case Netbeans IDE automatically first deploy the application is web server and then run it and open the home web page in default browser.

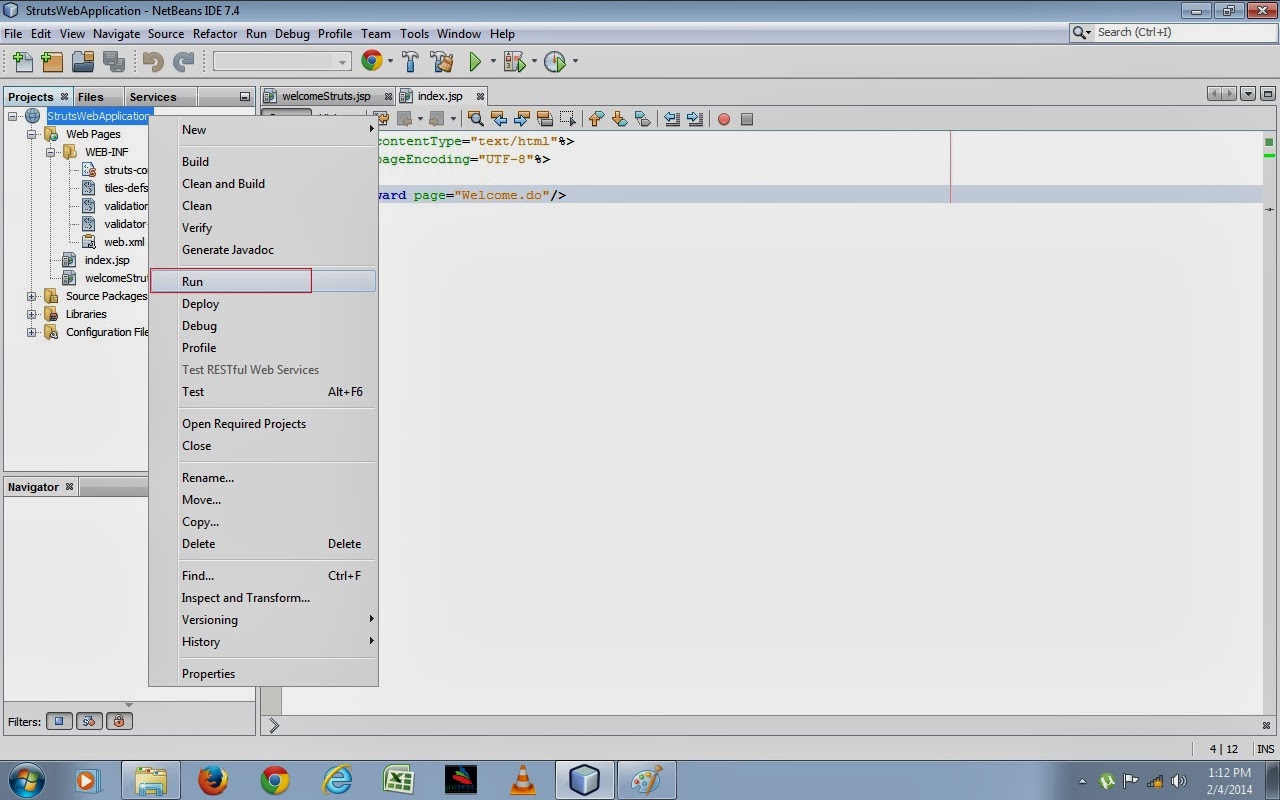

Right click on your project name in project section and click on Run as showing in below.

Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development, Java IDE, Java development softwares, how to deploy struts web application is glassfish web application server, glass fish server

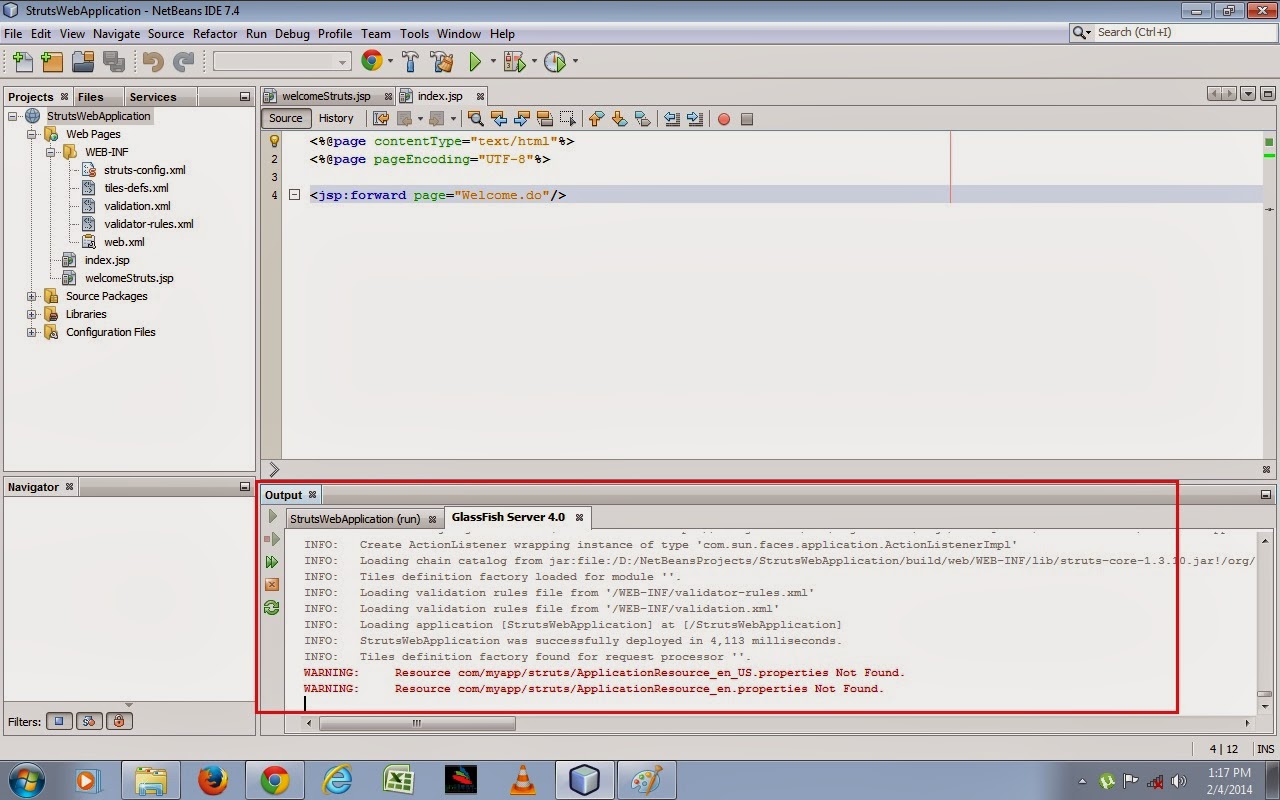

Deployment process is showing below


After deployment project in GlassFish web application server, GlassFish web server run the application and will open the home page in web browser which is welcomeStruts.jsp as showing below.

You can also open the web application in web browser by given web address which is

http://localhost:8080/StrutsWebApplication/

Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development, Java IDE, Java development softwares


Add following line <h1>Congratulation You have been Successfully created Struts Project </h1> in welcomeStruts.jsp file as showing below and save it.

<%@page contentType="text/html"%>
<%@page pageEncoding="UTF-8"%>

<%@ taglib uri="http://struts.apache.org/tags-bean" prefix="bean" %>
<%@ taglib uri="http://struts.apache.org/tags-html" prefix="html" %>
<%@ taglib uri="http://struts.apache.org/tags-logic" prefix="logic" %>

<html:html lang="true">
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
        <title><bean:message key="welcome.title"/></title>
        <html:base/>
    </head>
    <body style="background-color: white">

        <logic:notPresent name="org.apache.struts.action.MESSAGE" scope="application">
            <div  style="color: red">
                ERROR:  Application resources not loaded -- check servlet container
                logs for error messages.
            </div>
        </logic:notPresent>

        <h3><bean:message key="welcome.heading"/></h3>
        <p><bean:message key="welcome.message"/></p>
        <h1>Congratulation You have been Successfully created Struts Project </h1>
    </body>
</html:html>

Just refresh the your already open page. Now you can see your modify data.


Find Java Struts tutorial to learn how to create Struts Java ee 7 web application project in NetBeans IDE and GlassFish Web application Server. Learn Java web application development using Struts Framework. Netbeans IDE Tutorial, Struts tutorial, Java Server, Java EE 7 tutorials, Struts framework tutorial, Strut, java framework, java struts, struts java, java web action, Struts java web application development, Java IDE, Java development softwares


Congratulation you have successfully learned java ee web application development using java struts framework in Netbeans IDE and how to deploy it in Glassfish web application server.
